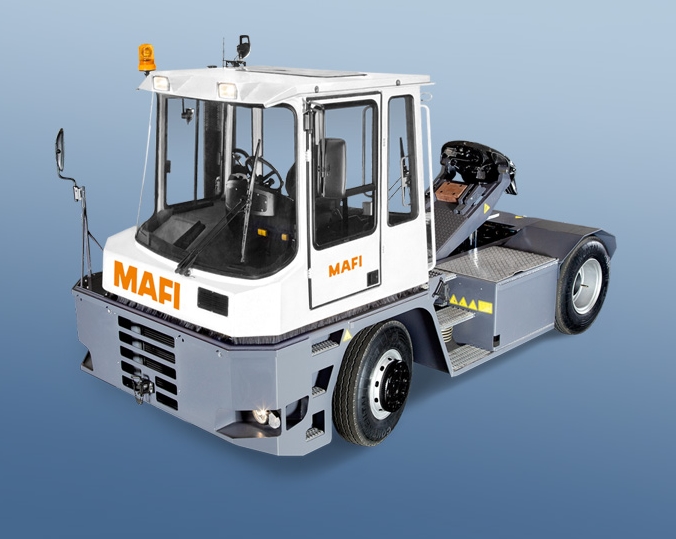

The terminal tractor was originally designed for container handling in seaports; however, it can also be used in many industrial applications that involve moving heavy loads.
Built to current technical standards, this generation of terminal tractors is state-of-the-art and includes many important benefits and improvements for operators, workshops, drivers, as well as the environment. The latest generation engines in combination with a correspondingly adapted drive train allow for reduced fuel consumption and low exhaust emissions
Vehicle type | T 230 |
Operation areas | Seaports, Distribution-/Logistic Centers and Industry |
System load | up to 90 ton (198,000 lbs.) (GCW) |
Engine | Diesel engine |
Tractor weight | approx. 7600 kg (16,755 lbs.) |
Type of engine | Cummins or VOLVO form each 129kW up to 172kW (175 HP/233 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 5WG191 or Allision 3000P |
5th wheel plate | Holland Eurohitch 3510-TR for 2" kingpin |
Lifting capacity | up to 32000 kg (70,550 lbs.) |
Wheel base | 3000 mm (118“) |
Speed | up to 40 km/h (25 mph) |
Axles | Front axle type VOLVO Rear axle type Kessler |
Cabin | ROPS and FOPS certified With one side door, access via the platform Windshield and rear window made of laminated glass |
The electric terminal tractor was originally designed for container handling in seaports; however, it can also be used in many industrial applications that involve moving heavy loads.
It exceeds the strictest requirements in terms of handling, comfort and productivity. Furthermore, this tractor has the advantage of low operating costs over its entire service life.
Electrically Driven |
Hydraulically operated fifth wheel |
Spacious cabin |
Cabin ROPS/FOPS certified |
Best possible all-round visibility |
Selection of state-of-the-art, high-performance engines |
Low maintenance |
Maximum useful life (operating life?) |
Low total cost |
Small turning radius |
Designed for Seaports & Industry |

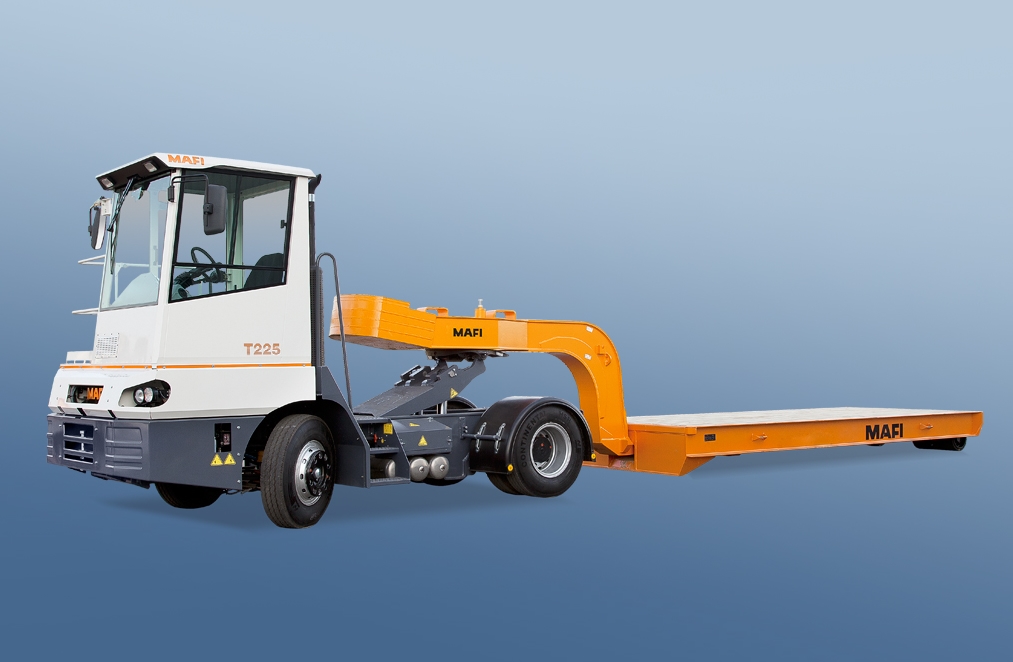

The T 225 D distribution tractor is used especially for moving semi-trailers in distribution and logistics centers. The longer wheelbase allows for significantly more free space between the semi-trai-ler and the driver’s cab.
As a result, the brake and power supply for the semi-trailer can be connected faster. The driver works safely, comfortably and effectively, without ever leaving the vehicle platform. Low coupling heights can be guaranteed by the use of the appropriate tires. Using the tractor to lift the coupled semitrailer hydraulically eliminates the time-consuming raising and lowering of the trailer’s landing legs. As a result, the T 225 D can move 3 – 4x more semitrailers than a conventional road truck.
Vehicle type | T 225 D |
Operation areas | Seaports, Distribution-/Logistic Centers, Industry |
System load | up to 60 ton (132,300 lbs.) (GCW) |
Engine | Diesel engine |
Tractor weight | approx. 8000 kg (17,650 lbs.) |
Type of engine | Cummins or VOLVO form each 129kW up to 172kW (175 HP/233 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 5WG191 or Allision 3000P |
5th wheel plate | Holland Eurohitch 3510-TR for 2" kingpin |
Lifting capacity | up to 25000 kg (55,115 lbs.) |
Wheel base | 3500 mm (137,8") |
Speed | up to 40 km/h (25 mph) |
Axles | Front axle type VOLVO Rear axle type Kessler |
Cabin | ROPS and FOPS certified With one side door, access via the platform Windshield and rear window made of laminated glass |
The T 225 De electric distribution tractor is used especially for moving semi-trailers in distribution and logistics centers. The long wheelbase of 3,500 mm allows for significantly more free space between the semi-trailer and the driver's cab.
As a result, the brake and power supply connections for the semi-trailer can be made faster. The driver works safely, comfortably and effectively, without ever leaving the vehicle platform. Low coupling heights can be
Electrically Driven |
3,500 mm wheelbase |
Hydraulically liftable fifth wheel |
Spacious cabin |
Cabin ROPS/FOPS certified |
Best possible all-round visibility |
Selection of state-of-the-art, high-performance engines |
Low maintenance, Maximum operating life |
Low total cost, Small turning radius |
Engine and transmission designed for logistic centers and industry |
The terminal tractor was originally designed for container handling in seaports; however, large container terminals are using more and more terminal tractors with a fixed 5th-wheel plate. The associated container chassis remains connected to the tractor and is only removed for maintenance purposes.
The fixed 5th-wheel plate significantly lowers investment costs, as well as maintenance requirements. Thanks to its robust construction, the T 230 F can be used for container loads of up to 70 tons.
Vehicle type | T 230 F |
Operation areas | Seaports |
System load | up to 90 ton (198,000 lbs.) (GCW) |
Engine | Diesel engine |
Tractor weight | approx. 7400 kg (16,300 lbs.) |
Type of engine | Cummins or VOLVO form each 129kW up to 172kW (175 HP/233 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 5WG191 or Allision 3000P |
5th wheel plate | Holland Eurohitch 3510-TR for 2" kingpin mounted at a fixed height, i.e. without hydraulic/hydraulic cylinders |
Lifting capacity | up to 25000 kg (55,115 lbs.) |
Wheel base | 3000 mm (118") |
Speed | up to 40 km/h (25 mph) |
Axles | Front axle type VOLVO Rear axle type Kessler |
Cabin | ROPS and FOPS certified With one side door, access via the platform Windshield and rear window made of laminated glass |

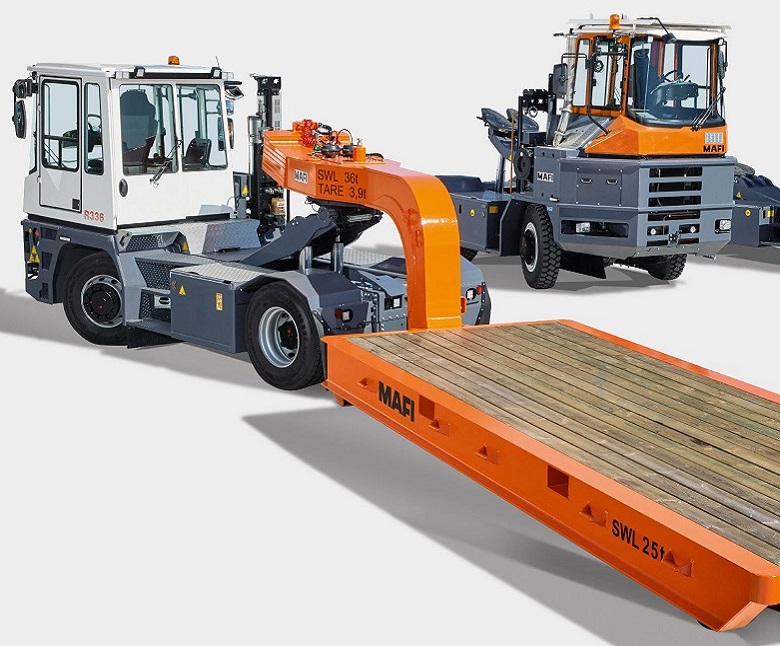

The design of the R 336 is based on the structure of the R 332. A more powerful engine and a stronger rear axle, in combination with the corresponding tires, make it easy to fulfill your trans-port tasks.
The 5th-wheel’s lifting capacity of 36 tons allows for a higher system load. This is the perfect trac-tor for RoRo operations with larger loads or for your transport requirements in steel mills.
Vehicle type | R 336 |
Operation areas | Seaports, industry and steel mills |
System load | up to 120 - 165 ton (265,000 lbs. - 363,760 lbs.) (GCW) |
Engine | Diesel engine |
Tractor weight | approx. 10000 kg (22,050 lbs.) |
Type of engine | VOLVO or Mercedes form each 185kW up to 210kW (248 HP/281 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 6WG2115th wheel plate Holl and Eurohitch 3510-TR for 2" kingpin |
Lifting capacity | up to 36000 kg (79,360 lbs.) |
Wheel base | 3250 mm (128") |
Speed | 38 km/h (23.6 mph) |
Axles | Front axle type Kessler Rear axle type Kessler |
Cabin | ROPS certified With rear sliding door and side door Windshield and rear window made of laminated glass |
The R 332 Z tractor is equipped with a ballast weight in order to pull drawbar trailers. The tractor comes with a base plate of approx. 2 tons. In order to ensure a proper traction, this ballast weight can be increased according to the expected payload of the drawbar trailer.
Different types of ballast weights are available. You can choose from either fixed ballast weights or detachable ones with a parking stand. Brake and electric connections for the trailer are mounted next to the trailer hitch at the rear.
Vehicle type | R 332 Z |
Operation areas | Seaports, industry and steel mills |
System load | up to 180 ton (396,800 lbs.) (GCW) in combination with a ballast |
Engine | Diesel engine |
Tractor weight | approx. 10500 kg (23,150 lbs.) |
Type of engine | VOLVO or Mercedes form each 185kW up to 210kW (248 HP/281 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 6WG211 |
5th Wheel Plate | Without |
Trailer hitch | Mounted at rear |
Wheel base | 3250 mm (128") |
Speed | 38 km/h (23.6 mph) |
Axles | Front axle type Kessler Rear axle type Kessler |
Cabin | ROPS certified With rear sliding door and side door Windshield and rear window made of laminated glass |
The HD 445 tractor is MAFI’s largest and most powerful vehicle. With a liftable 5th-wheel capacity of 45 tons, it is mainly used in steel mills, foundries and other heavy industry. Eco-friendly engines with outputs of up to 285 kW ensure the smooth transport of payloads of up to 220 tons. When used in combination with a ballast weight, the HD 445 tractor can pull even greater loads on draw-bar trailers.
The HD 445 tractor combines a comfortable workspace with state-of-the-art equipment. The use of well-known quality components ensures that the tractor is always ready for operation. The vibration insulated mounting of the ROPS / FOPS-certified cab contributes to better ride quality by reducing both vibration and noise.
Vehicle type | HD 445 |
Operation areas | Seaports and steel mills |
System load | up to 250 ton (551,155 lbs.) (GCW) |
Engine | Diesel engine |
Tractor weight | approx. 14000 kg (30,865 lbs.) |
Type of engine | VOLVO or Cummins with each 285kW up to 210kW (382 HP) (depending on exhaust emission stage IIIA, IV or V) |
Transmission | ZF 6WG260 or ZF 6WG310 |
5th Wheel Plate | Holland Eurohitch FW0100 for 3.5" kingpin |
Wheel base | 3250 mm (128") |
Speed | 38 km/h (23.6 mph) |
Axles | Front axle type Kessler Rear axle type Kessler |
Cabin | ROPS certified With rear sliding door and side door Windshield and rear window made of laminated glass |
The tractor HD 445 Z is mainly used in steelworks, foundries and other heavy industry.
Eco-friendly Volvo engines with outputs of up to 315kW ensure the smooth transport of payloads of up to 250 tons. When used in combination with a ballast weight, the HD 445 Z tractor can pull even greater loads on drawbar trailers.
The HD 445 tractor combines a comfortable workspace with state-of-the-art equipment. The use of well-known quality components ensures that the tractor is always ready for operation.
Components protected and centrally installed |
Swivel seat with logical change of the steering and driving direction with the highest possible ease of use |
Tilt-adjustable steering wheel |
Spacious driver's cab with rear sliding and side doors |
Best possible all-round visibility |
Cabin ROPS/FOPS certified |
Air-suspended rear axle active up to 20 tons |
New technologies from well-known and proven manufacturers |
Easiest maintenance and repair |
Multi-Function Display |

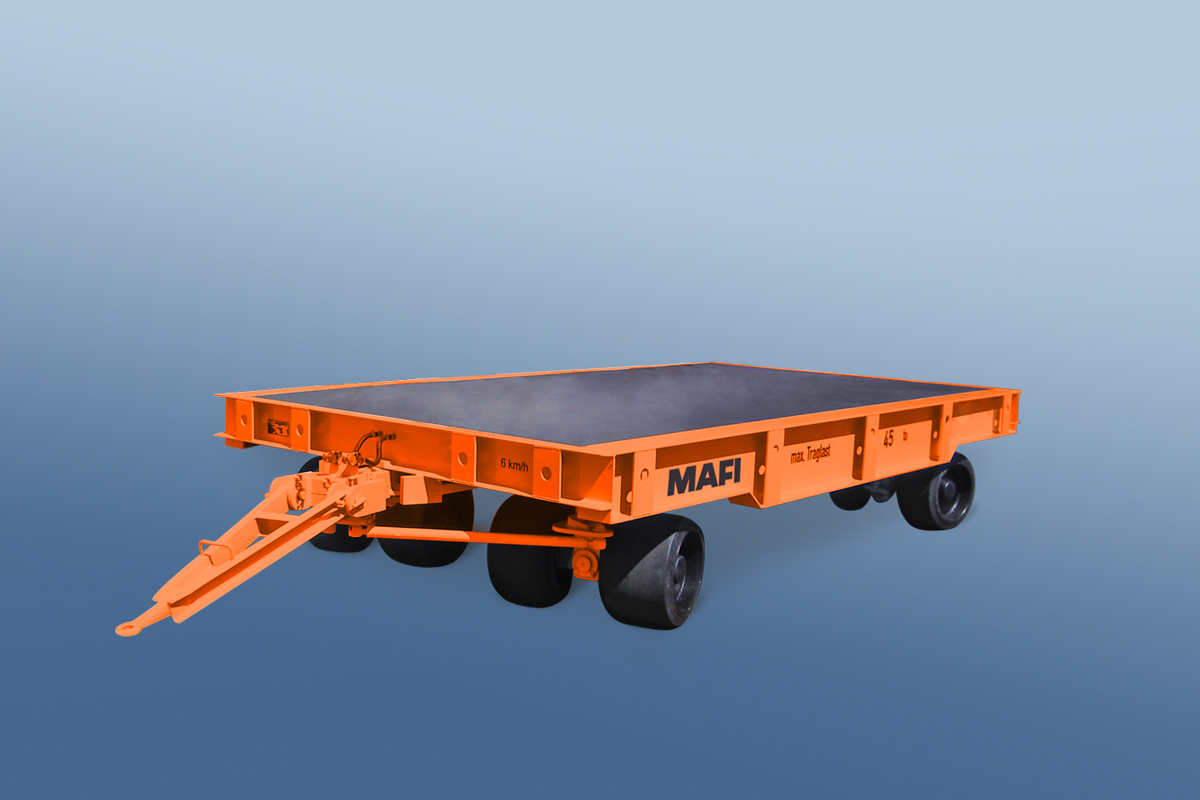

MAFI drawbar trailers are used for the in-house transport of heavy loads of up to 320 tons. The trailer dimensions and steering systems are specially tailored to each customer’s transport needs.
Various loading platform materials, tires, brakes or other equipment variants are also available as options. All drawbar trailers are of high quality and robustly built. Depending on the size and / or payload, the drawbar trailers can be towed with a forklift truck or another suitable towing vehicle. Custom solutions are also available. They are designed in cooperation with the customer in order to meet each customer’s individual needs.

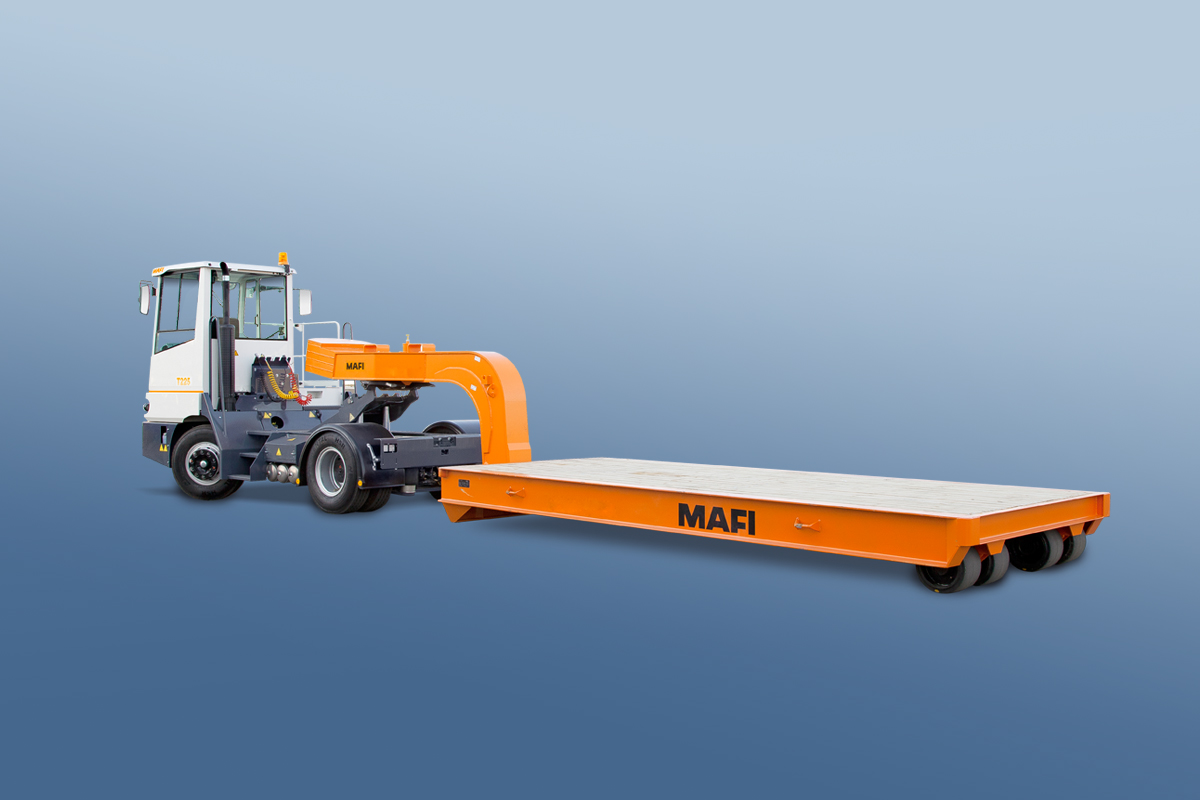

The Cargo Trailer System - a fast and economic means of transportation in ports and industry. Roll / cargo trailers are used to transport various goods in maritime and industrial applications. Depending upon the application, a transport system can handle payloads of up to 250 tons. Roll- / Cargo trailers are built for standard 20', 30' or 40' container sizes, however, custom-sized trailers in all possible lengths and widths are also feasible.Roll / Cargo trailers are generally delivered with solid rubber tires, but SE (super elastic) tires are also possible. The addition of coils beds also allows the trailers to transport steel coils.
Simple one-man operation |
Fast automatic coupling |
Extremely robust |
Low maintenance costs |
Economic transportation and storage |
Triples transport capacity of the tow tracto |

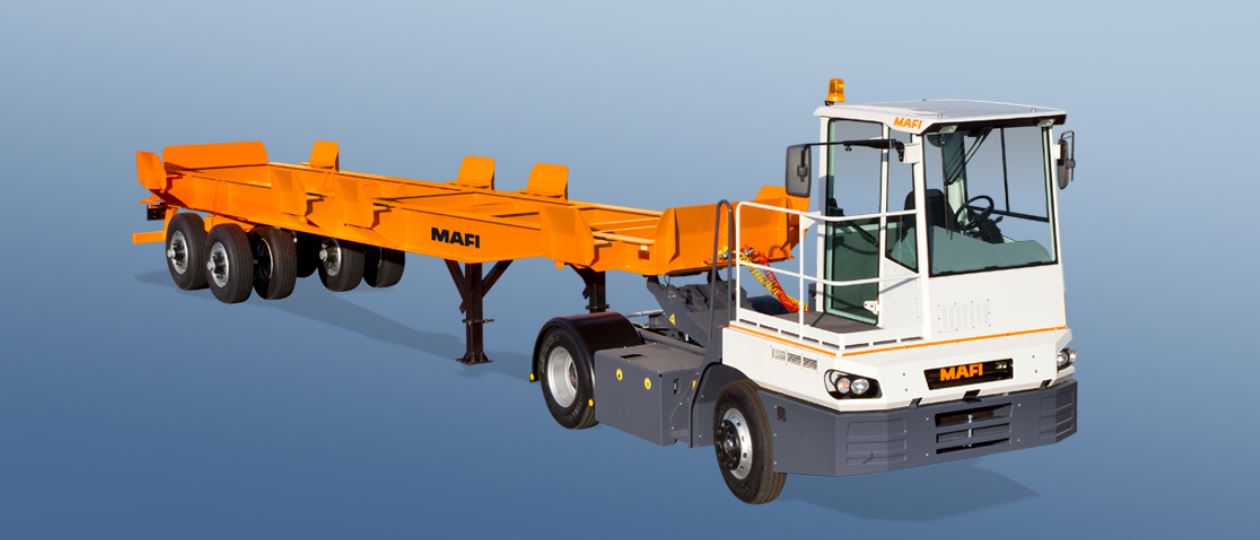

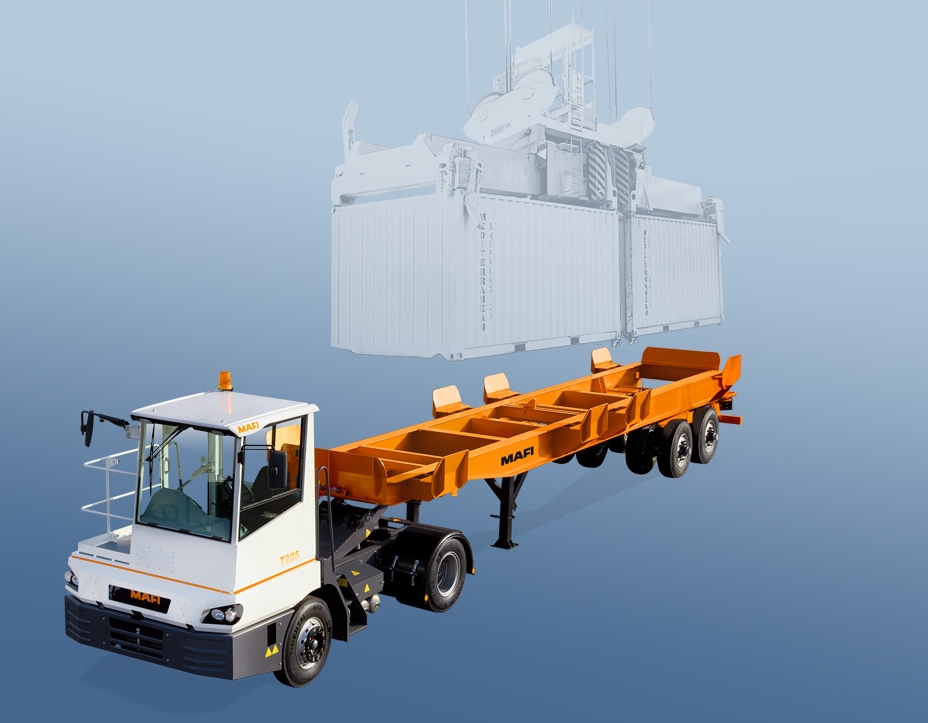

Container chassis are used to transport standard ISO containers in seaports. Here, the containers are lowered by crane from the ship onto the chassis, which is coupled to a terminal tractor. The containers are then distributed or reloaded in the port terminal. Container chassis are available in sizes from 20' to 45'. The payload can be up to 70 tons.
Container chassis are available in different versions. Depending on customer requirements, they can be delivered as bump carts, with twistlocks or with locating pins.
Furthermore, various options such as air brakes, rear lights, steps, etc. are also available.

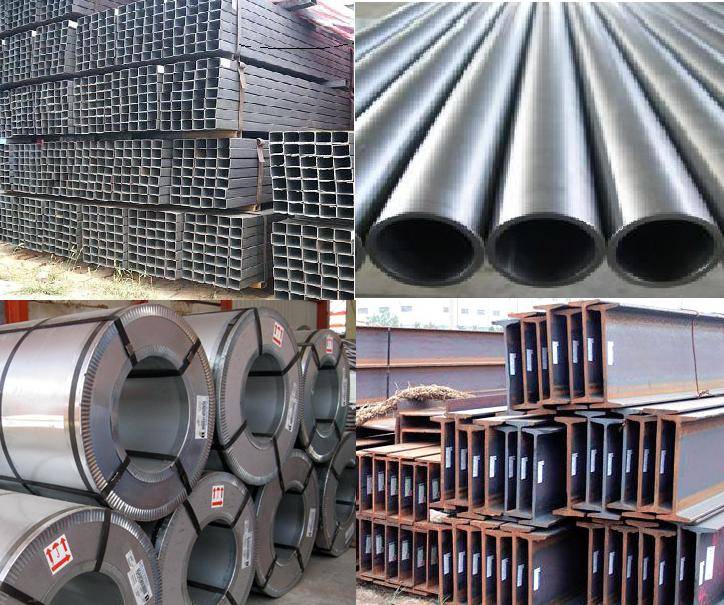

PiBS SILP LTD. Is successful in trading and distribution of various Agricultural, Energy & Metal commodities.

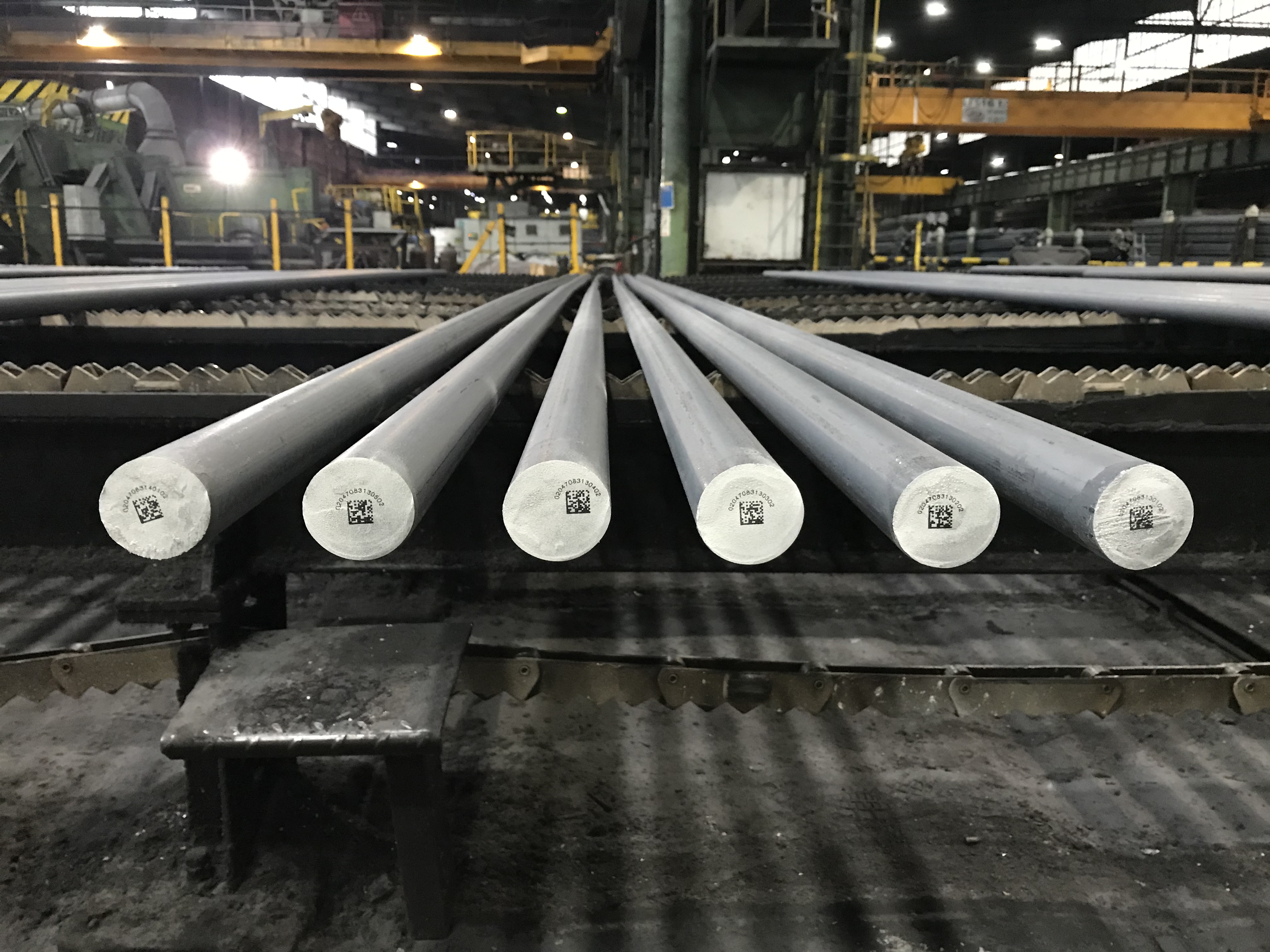

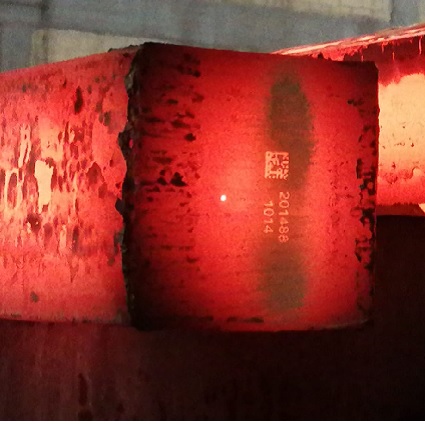

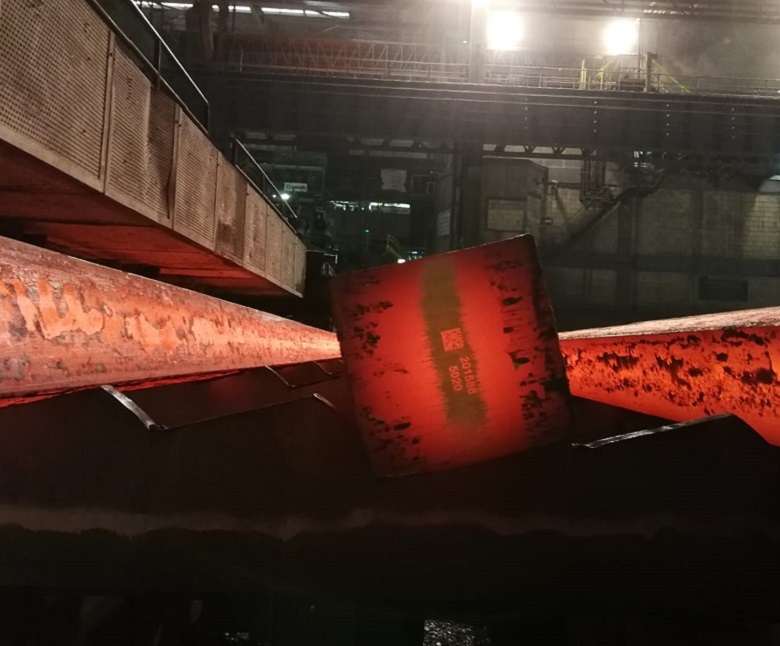

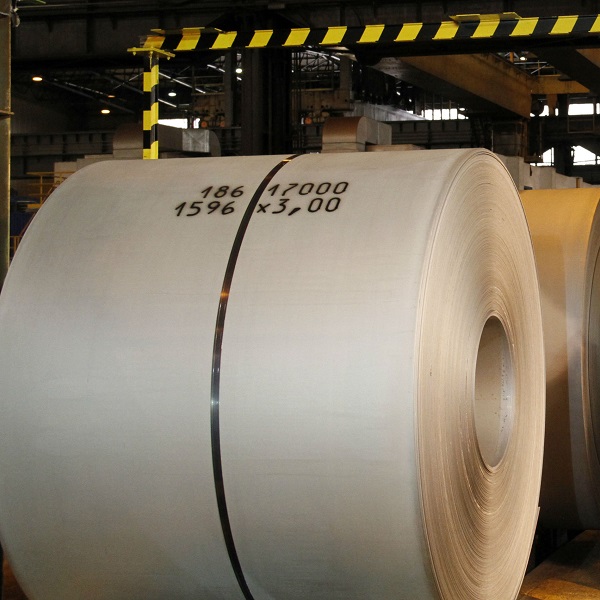

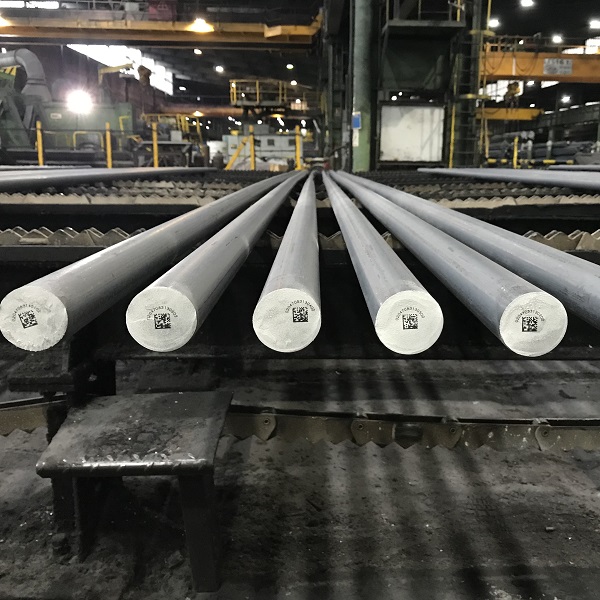

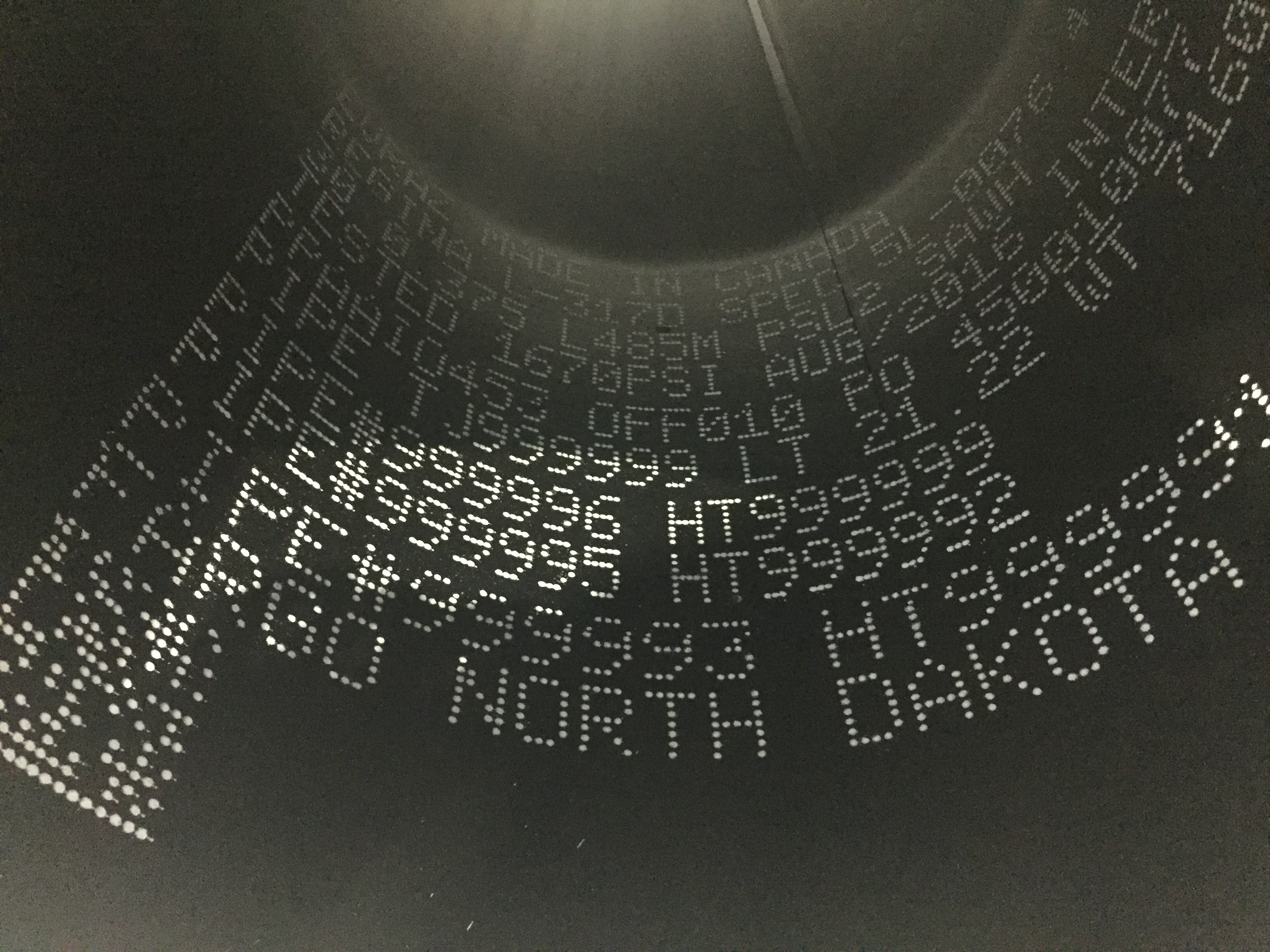

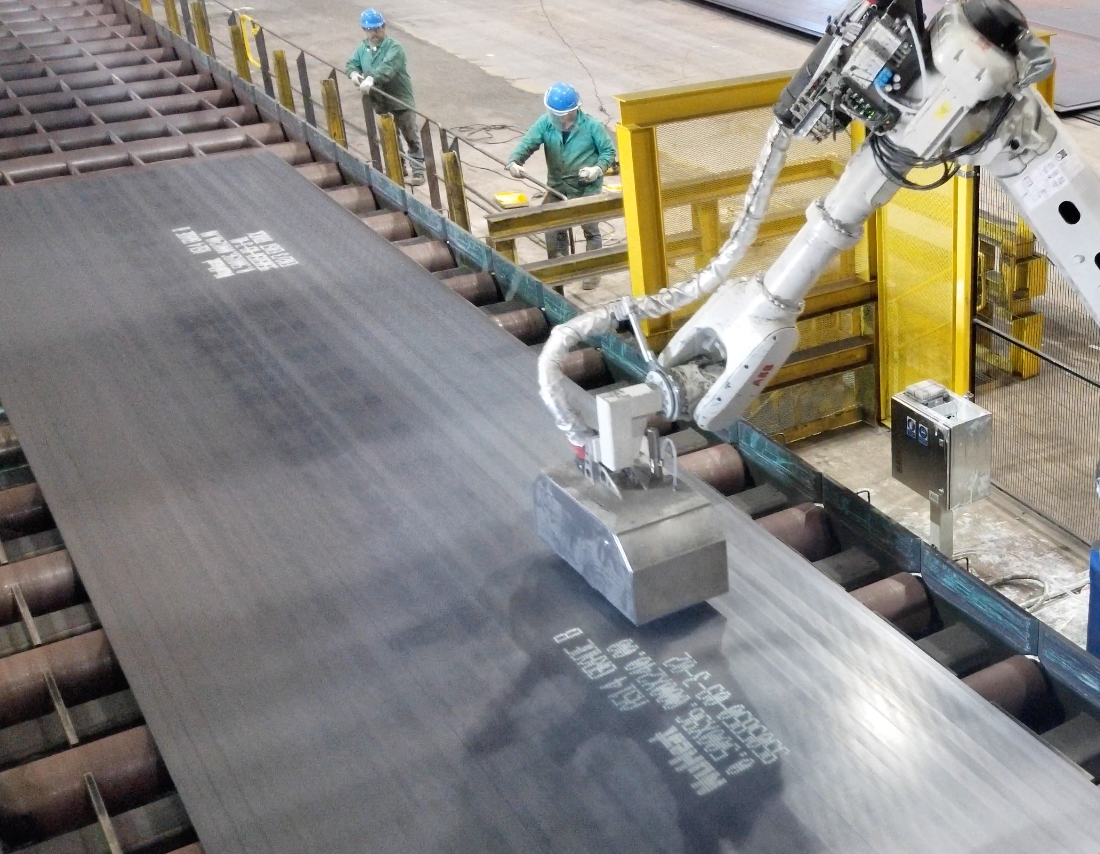

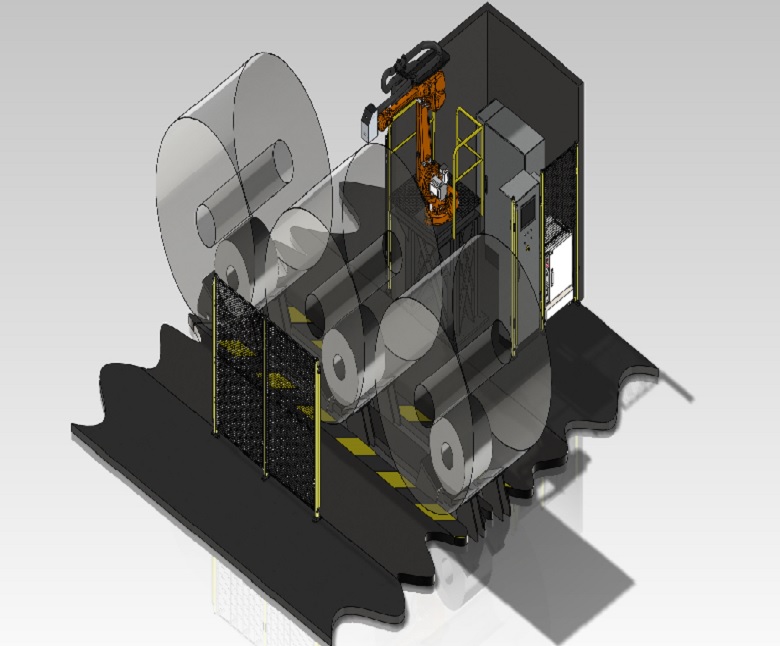

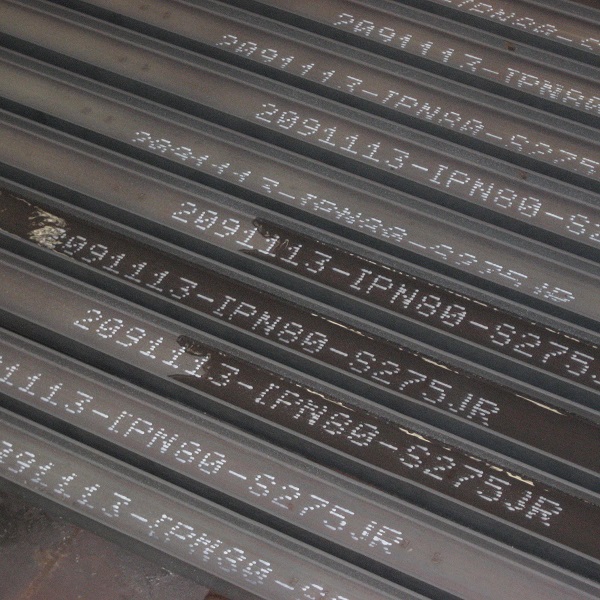

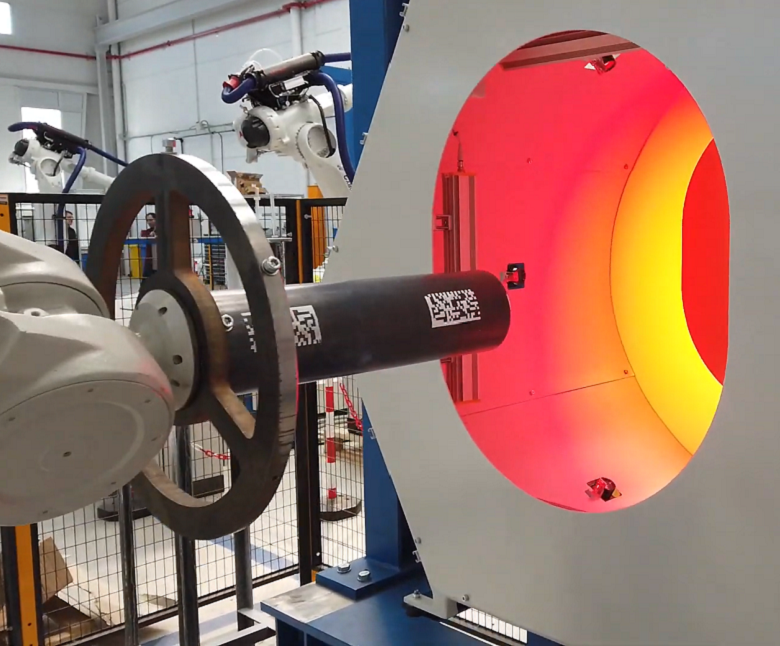

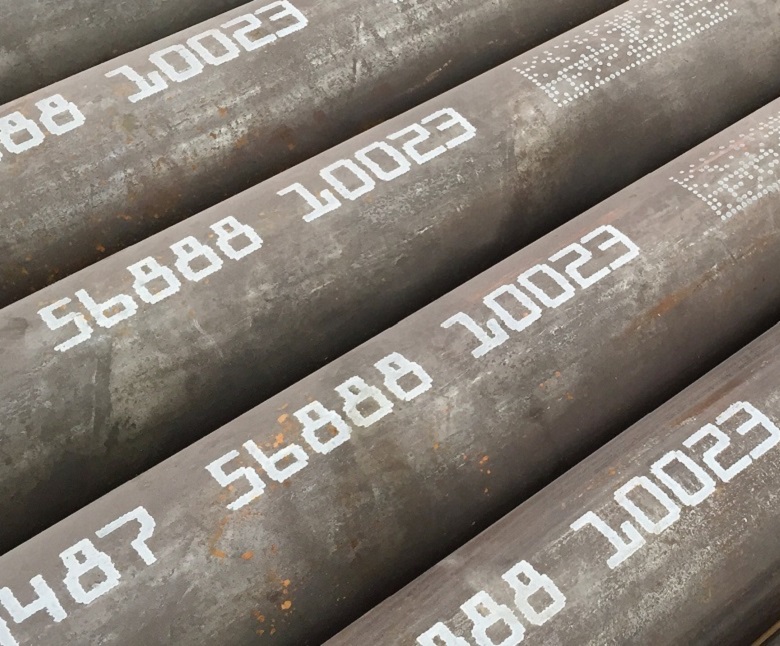

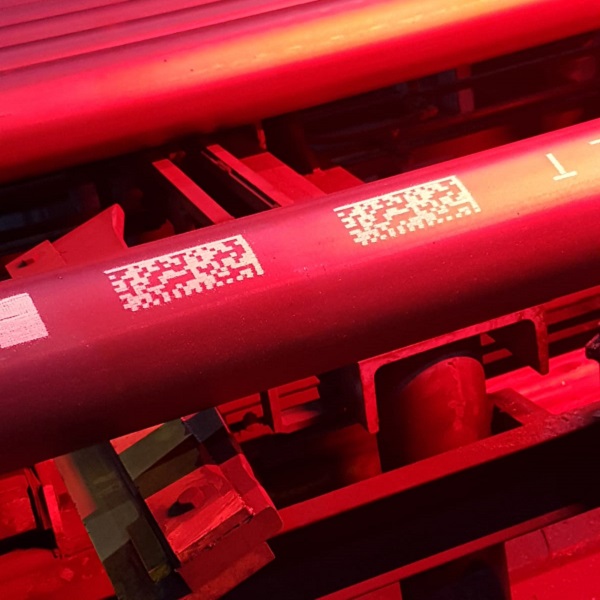

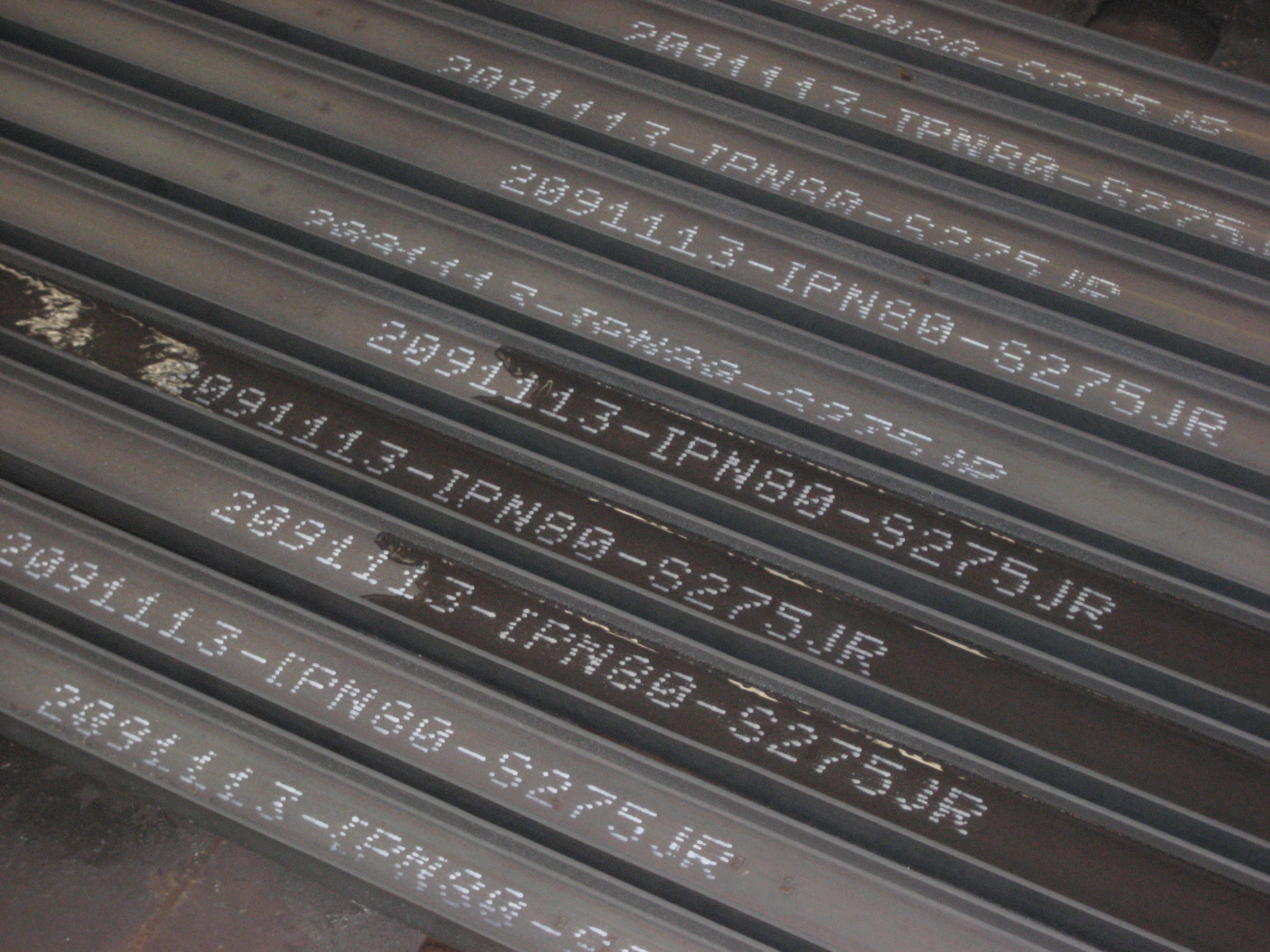

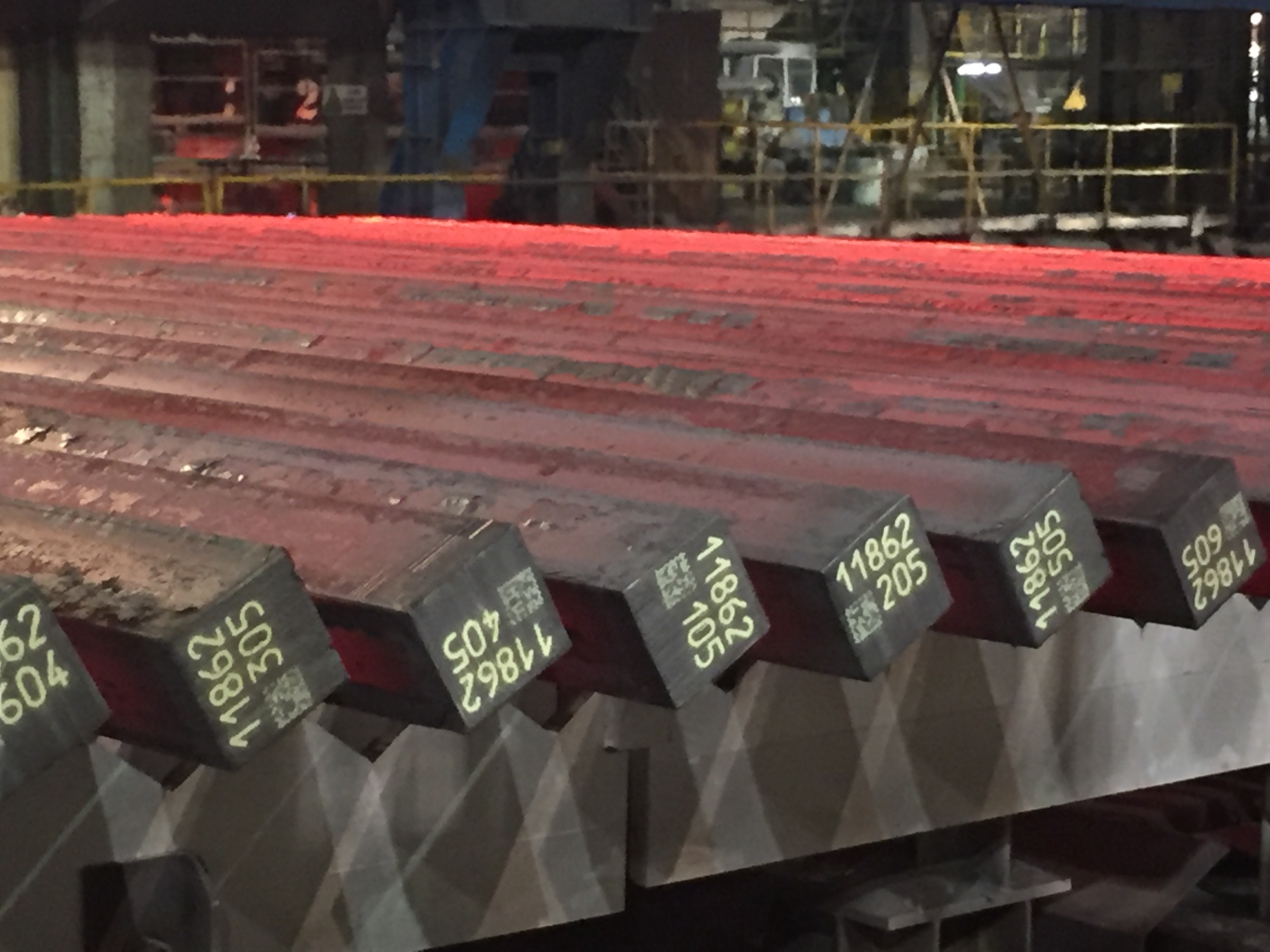

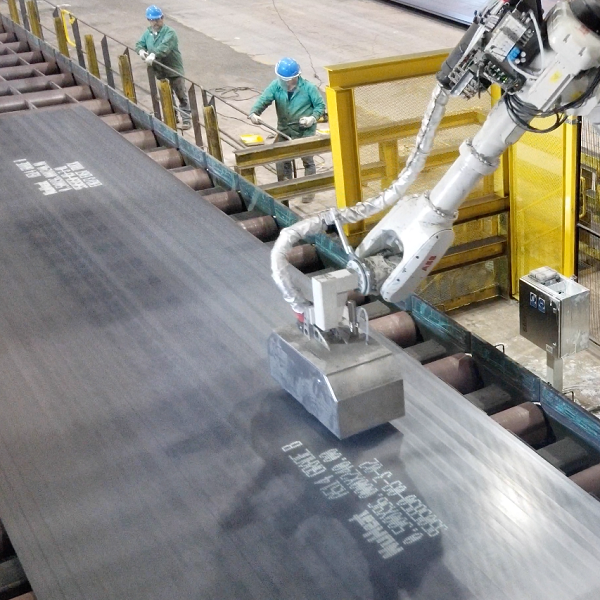

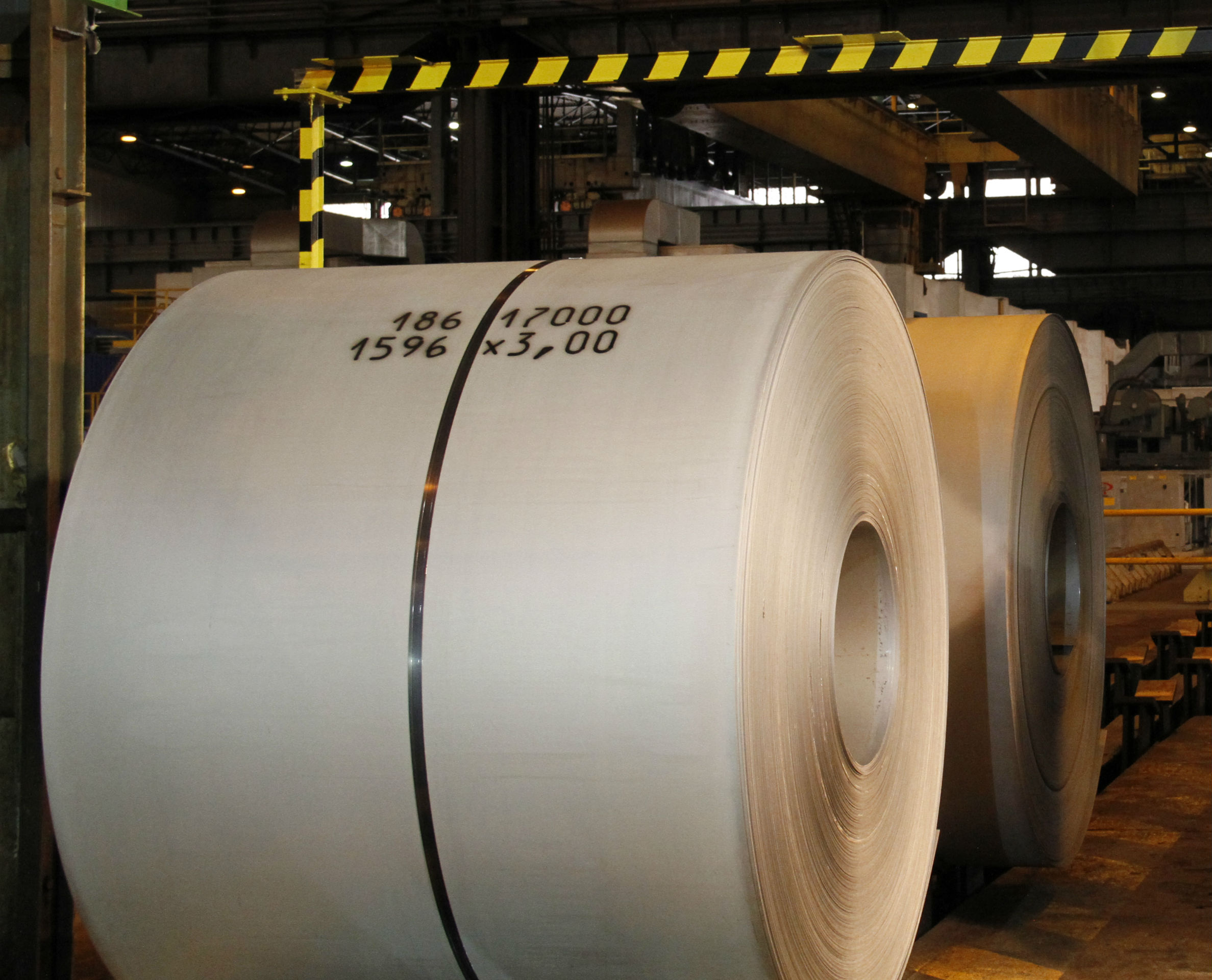

We provide a set of solutions for the automated marking of steel products, like Billets/Blooms/Slabs, Coils, Pipes/tubes, Plates, H-Beams, Bars. Our whole integrated marking system is industry 4.0 compliant which helps our customer manage and optimize all aspects of the manufacturing processes and supply chain. It enables access to real time data and insights our customers need to make smarter, faster decisions about their business which ultimately boost the efficiency, sustainability and profitability of the entire operation.

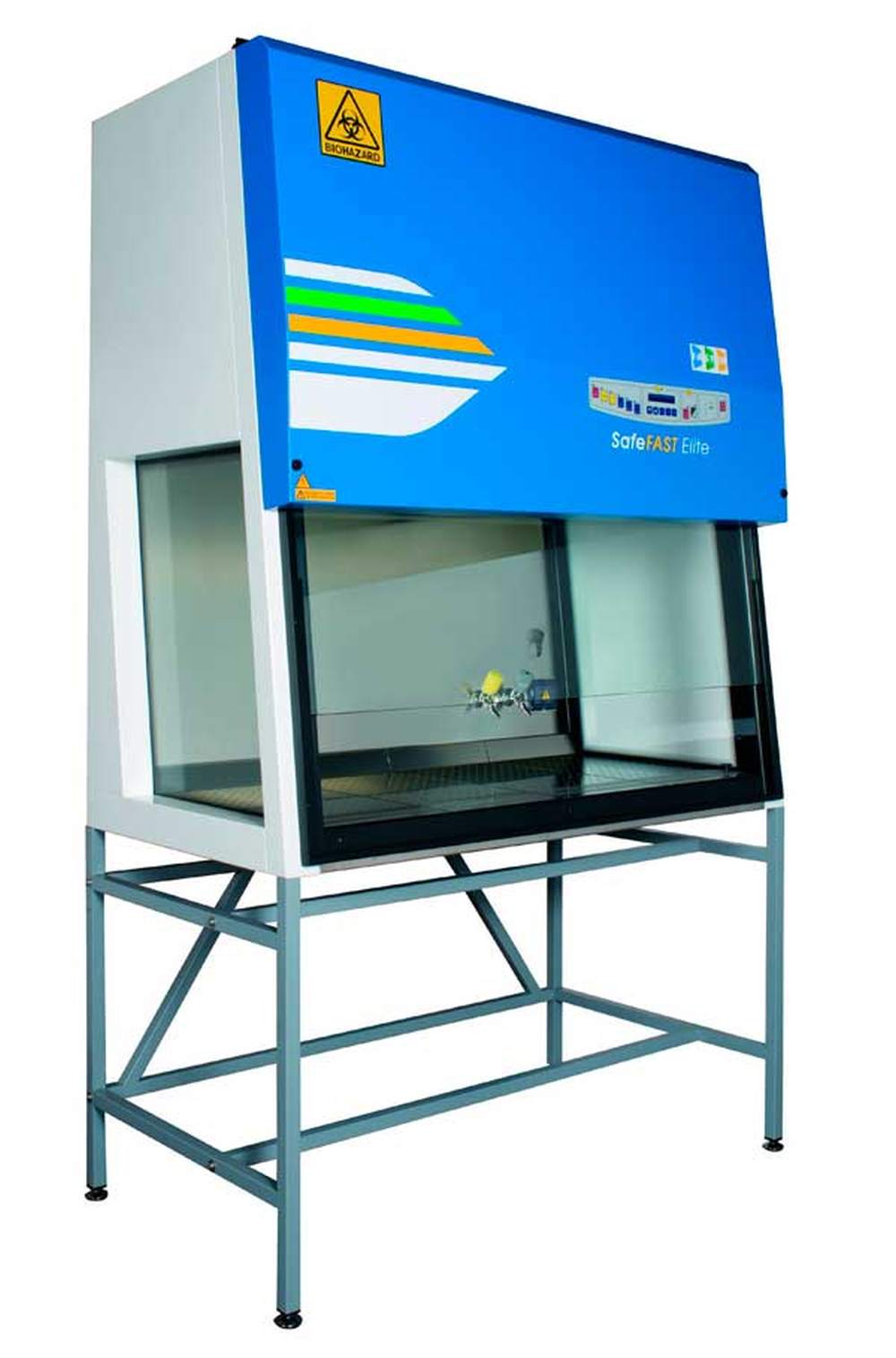

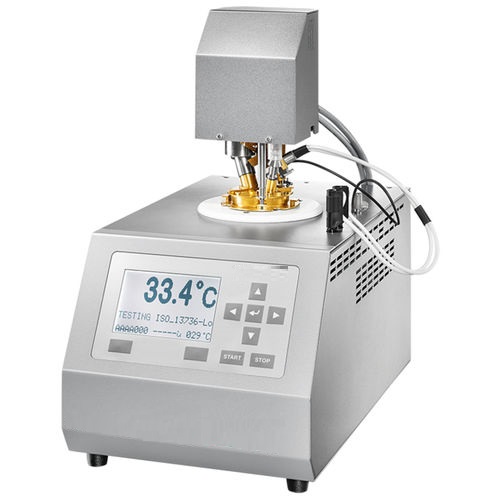

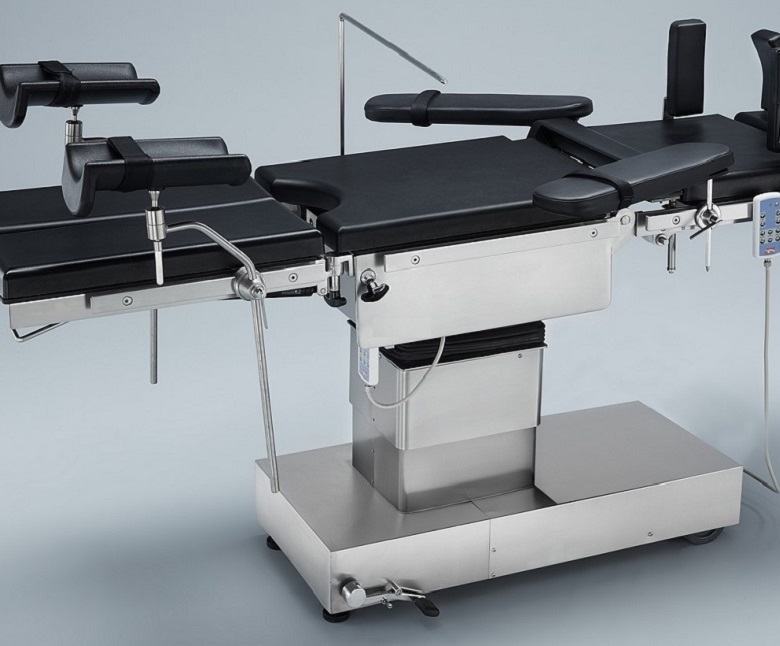

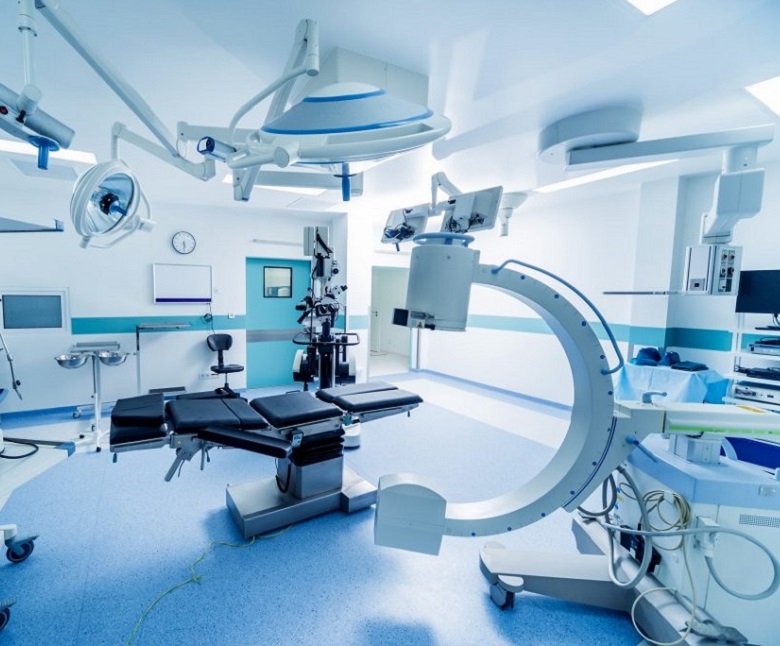

We are the authorized partner with the leading manufacturers of medical instruments that are manufactured with the latest technology by using high-grade raw materials. These are appreciated all over the world for their efficiency and smooth functioning. Further, we are also striving hard to fulfill our future plans of expanding our business, providing improved models at reasonable prices and venturing into export.

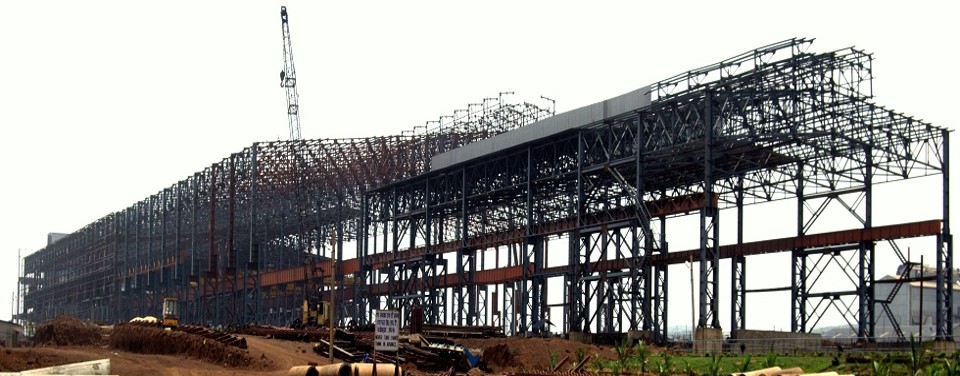

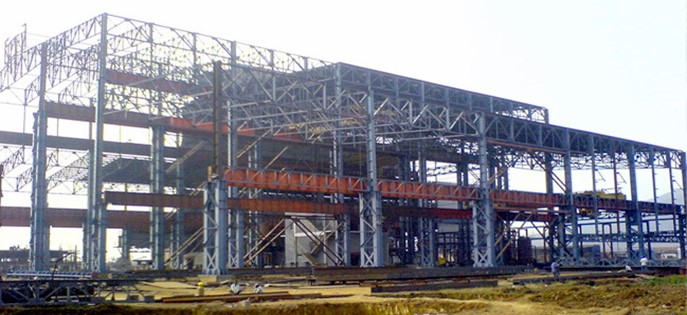

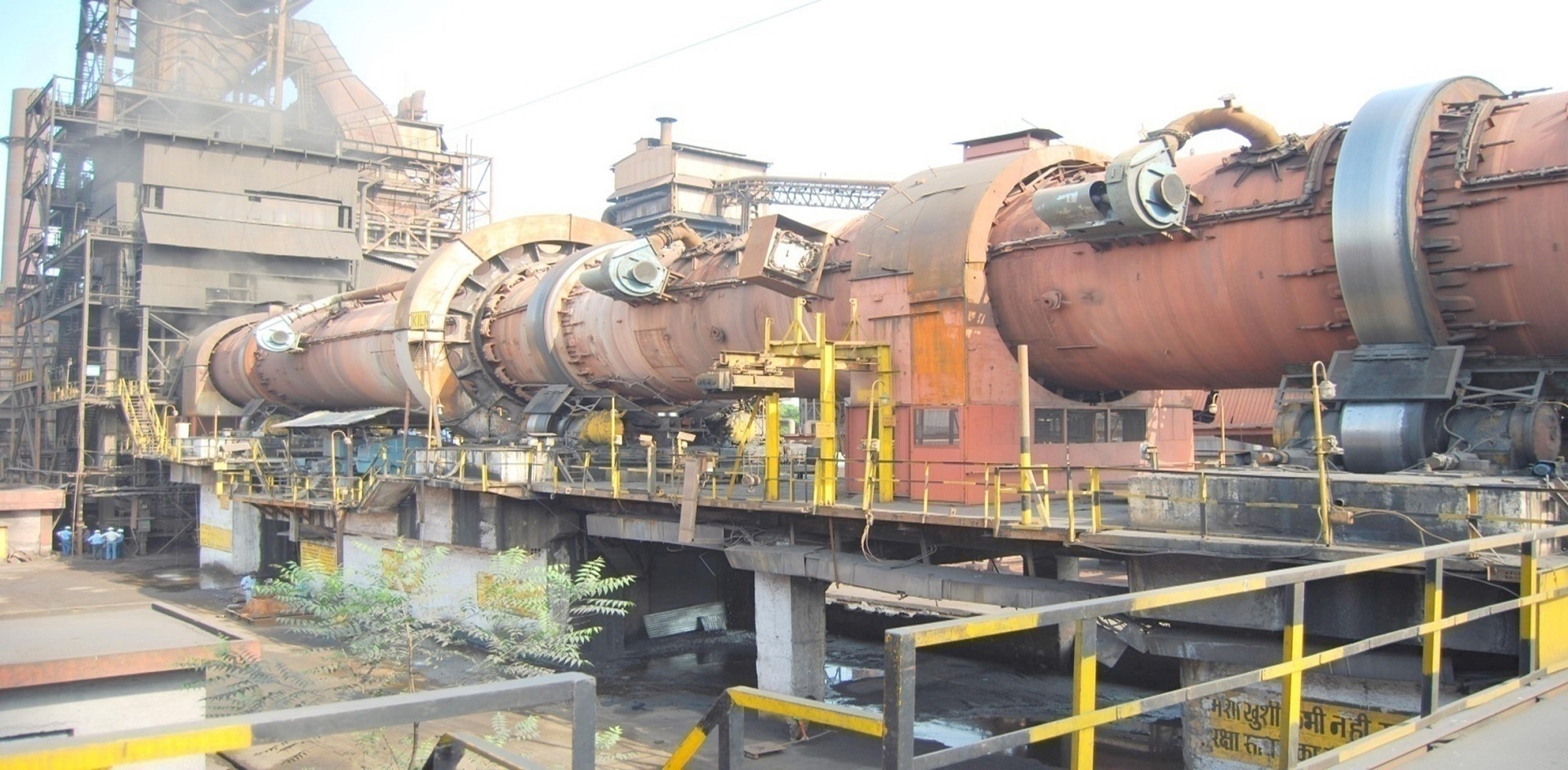

PiBS is engaged in providing a comprehensive range of services ranging from providing plant design and engineering to undertaking turnkey projects thereby managing all aspects of Project management. Our technical group team consists of highly skilled professionals and experienced engineers who have undertaken and commissioned several projects successfully in India.
